Automated Machines

Mine Master designs and manufactures automated machines for underground drilling and bolting operations, reducing operator workload and increasing the repeatability of drilling and bolting cycles. Selected models are equipped with the Automatic Drilling System (ADS), Feeder Guiding System (FGS) or fully automatic bolting technology, executing key parts of the process with reduced operator intervention.

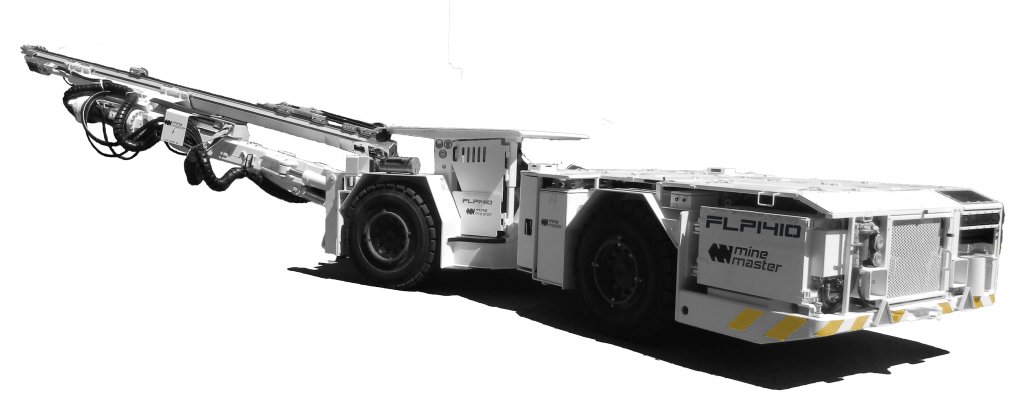

FLP1410ADS

The FLP1410ADS is based on the FLP1410 low-profile, single-boom, self-propelled underground drill rig, with a minimum tramming height of 1.4 m and face coverage up to 8.35 m (W) x 6.0 m (H). The ADS version is equipped with the Automatic Drilling System (ADS) and Feeder Guiding System (FGS), enabling fully automatic blast hole drilling […]

LEARN MORE ABOUT FLP1410ADS

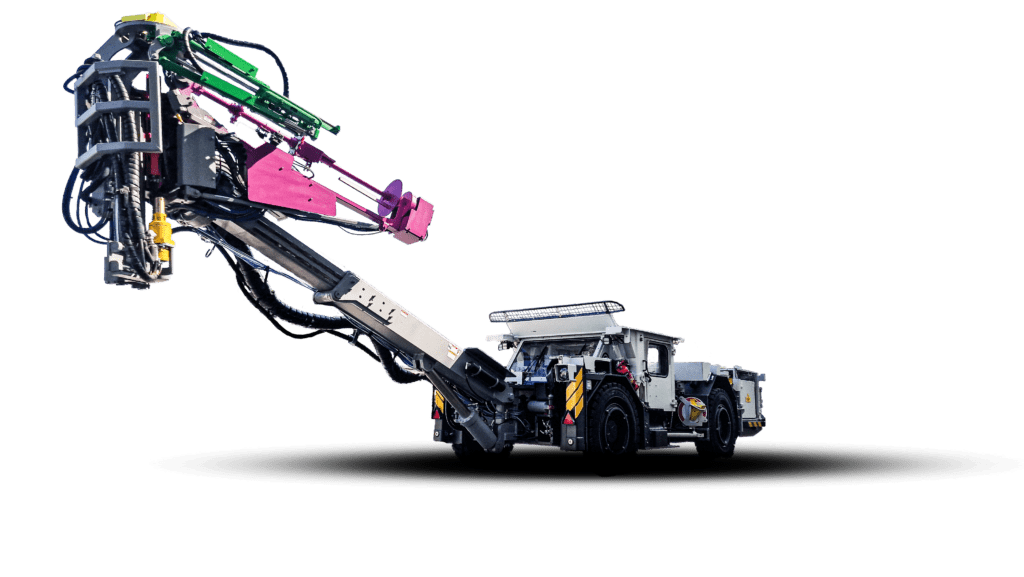

Roof Master 1.7KA

The Roof Master 1.7KA is a self-propelled roof bolting rig developed in collaboration with J.H. Fletcher and KGHM Polska Miedź, designed for medium-height seams. Its fully automatic bolting mast installs both resin and mechanical bolts, including 1.6m bolts in workings from 2.3m height and 1.8m bolts in workings from 2.5m height, with reduced operator intervention.

LEARN MORE ABOUT Roof Master 1.7KA

Production Master 2.311

Production Master 2.311 is a self-propelled long-hole drilling rig designed for drilling parallel upholes and downholes as well as fans and rings in vertical or inclined planes. This production machine has a completely redesigned working system based on the standard FM 2.320 machine chassis. The working part is mounted on a movable frame and the […]

LEARN MORE ABOUT Production Master 2.311

Automated machines for underground mining

Mine Master automated machines are engineered to reduce operator workload and increase the repeatability of drilling and bolting cycles in underground mining. Depending on the application, selected models execute key parts of the drilling or bolting process with reduced operator intervention, supporting safer and more consistent operations across hard and soft rock conditions.

Automatic Drilling System (ADS) and Feeder Guiding System (FGS)

Machines equipped with the Automatic Drilling System (ADS) allow the operator to select a drilling template for a specific face and initiate a fully automatic drilling process. Combined with the Feeder Guiding System (FGS), the machine supports automated positioning and drilling in a single workflow, recording operational data in real time to support blast planning and predictive maintenance.

Automatic bolting technology

Selected roof bolting rigs are equipped with a fully automatic bolting mast, capable of installing resin and mechanical bolts with reduced manual intervention. Adaptive drilling parameters adjust automatically to rock hardness, while on-line data registration supports quality control and analysis of geological conditions.
